News: Vitus Escarpe 135mm bike and Vitus Sommet 155mm All Mountain bike

27.5 29er All Mountain Trail Enduro News

2015 New Vitus Suspension Bikes

Vitus will provide three new bikes under the new suspension platform for 2015 ranging from the 135mm travel Escarpe in both 27.5″ and 29″ versions and the 155mm Sommet.

2015  Escarpe and Sommet Geo

Geometry Charts (Click to enlarge)

The 2015 Escarpe 275 frame sports 135mm of travel from a new Horst link rear end. The Horst link is efficient and is proven to be one of the most active and good climbing suspension designs available. The rear shock is on a floating pivot as well so it doesn’t ramp up and bottom out harshly at the end of its travel.

2015 Vitus Escarpe 275

The Escarpe 275 features roomy top tubes and mates them compact 435mm (17.13in) rear ends. The head is dialed at 67 degrees and the seat tube is ‘dropper post optimized’ at 74.5 degrees. It is perfectly steep for climbing efficiency and with a dropper post, the saddle is moved out of the way for steep descents.

Escarpe 275 Key Features
  • Intended use – Trail/Enduro
  • Wheel size – 27.5”
  • Travel – 135mm, Horst link suspension with horizontal floating shock mount.
  • Recommended fork travel – 140-150mm
  • Construction – 6061 T6 triple butted
  • Large 15mm main axle with Collet lock security
  • Shimano 142x12mm E-Thru axle system
  • Aggressive Trail Geometry (low, Slack, Long with short stem)
  • Sizes – S, M, L, XL
  • Removable High Direct FD mount.
  • ISCG 05-mounts for chainguide compatibility
  • Bolt on down tube protector to protect the down tube and cables from rock strikes.
  • Internal cable routing for Stealth Reverb

2015 Vitus Escarpe 29

The Escarpe is also available with 29er wheels. The head angle is adjusted to 68 degrees and the chainstay length increases by 15 mm to 450mm. All other features and technologies remain the same. Rear travel is 155 mm and it is designed for 160-170mm front travel.

Escarpe 290 Key Features
  • Intended use – Trail/Enduro
  • Wheel size – 29”
  • Travel – 135mm, Horst link suspension with horizontal floating shock mount.
  • Recommended fork travel – 140-150mm
  • Construction – 6061 T6 triple butted
  • Large 15mm main axle with Collet lock security
  • Shimano 142x12mm E-Thru axle system
  • Aggressive Trail Geometry (low, Slack, Long with short stem)
  • Sizes – S, M, L, XL
  • Removable High Direct FD mount.
  • ISCG 05-mounts for chainguide compatibility
  • Bolt on down tube protector to protect the down tube and cables from rock strikes.
  • Internal cable routing for Stealth Reverb

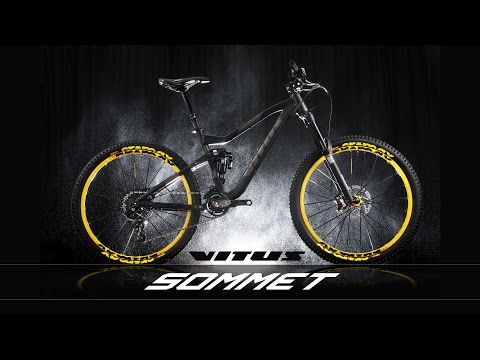

2015 Vitus Sommet

The Sommet 275 is a true All Mountain bike built for rugged descents and Enduro Racing. Much work has been done to suspension shock rates and rear end kinematics to deliver a plush descending bike with a good climbing platform. Geometry is dialed at 66 degrees for the head angle and 74.5 for the seat angle.

Sommet 275 Key Features
  • Intended use – Enduro
  • Wheel size – 27.5”
  • Travel – 155mm, Horst link suspension with horizontal floating shock mount.
  • Recommended fork travel – 160-170mm
  • Construction – 6061 T6 triple butted
  • Large 15mm main axle with Collet lock security
  • Shimano 142x12mm E-Thru axle system
  • Aggressive Enduro Geometry (low, Slack, Long with short stem)
  • Sizes – S, M, L, XL
  • Removable High Direct FD mount.
  • ISCG 05-mounts for chainguide compatibility
  • Bolt on down tube protector to protect the down tube and cables from rock strikes.
  • Internal cable routing for Stealth Reverb

Full spec’s for the 2015 models will be released in July with bikes and framesets for sale in November 2014.
